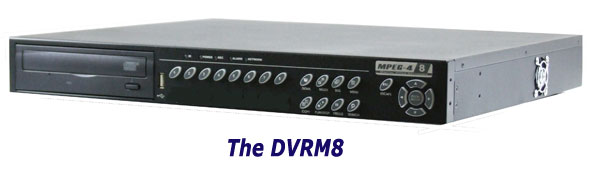

Optiview CCTV Products - 8 Camera Embedded DVR

This is an awesome DVR for the price! Its a rock solid machine with all of the most desired features including real time recording, remote viewing, and CDRW for backups. You cant find a more functional machine for the money.

Features

8 Channel Input
Triplex (Recording, Playback, Network all at the same time)
Advanced MPEG4 Compresssion
Remote Viewing
Real Time Display
Up to 120fps Recording Speed
Archiving via USB and CD-RW
Stable Operation System (Embedded Linux)
Motion Detection Smart Cell
UTP Solution
Scheduled Recording
Password Protection
Network Connection
IE Web Server and Remote Client
Firmware Upgrade
PTZ Control via RS-485 (Pelco D, Pelco P)
Camera Installation Plug & Play
Automatic Camera Detection
Support Covert Camera Operation
Support Pre-Alarm Recording
USB 2.0 Port for Video Clip Exporting
Built with ezBurnTM Technology
IR Remote Control Included

Specifications
Camera Inputs:	8
Image Compression:	MPEG4 Advanced
Operating System:	Embedded Linux
Operation:	Triplex
Zoom:	Digital 2 x 2
Video Input:	BNC x 8, 1.0Vp-p, 75 ohm
Video Output:	BNC to main monitor
Video Output:	VGA 800 x 600, 1024 x 768, 1280 x1024 pixels
Display output:	VGA, CCTV and spot monitor real time display
Audio Inputs:	2
Audio Outputs:	2
Hard Drive:	500 GIG standard 2 HD Maximum (expandable to 2 Terabytes)
Display:	30 fps per channel (@720 x 480)
Recording Rate:	120 fps (@360 x 240), 60 fps (@720 x 240)
Recording Qualities:	Best Quality, Standard, exRecord, Extended Record, DSL
Recording:	Schedule, Alarm, Motion Dectection

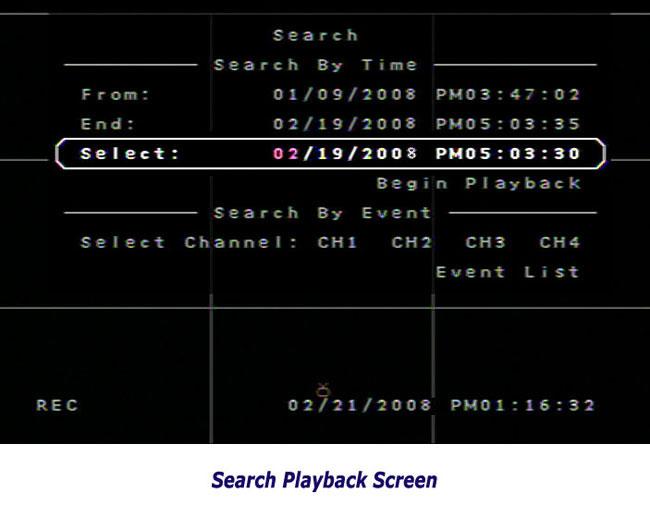

Search:	Time, Date, Event
Playback Speeds:	1X, 2X, ...32X
Alarm Inputs:	4 dry contacts, NC/NO programmable
Alarm Outputs:	1 Relay output (Form C)(Rating : 5A/30 VDC)
Pre-Alarm operation:	30 Images
PTZ Control	RS-485 interface
Archiving	USB 2.0, CD-RW , network
Network:	Ethernet RJ-45 connector, 10/100 mbps supports DHCP
Remote Operation:	Monitor, Playback, System Setup, Dome Camera Control
Password Control:	2 Level, Adminstrator / User
Dimensions:	440(W) x 340(D) x 50(H) mm
Unit Weight:	4.9 kgs (11 lbs)
Operation Temperature:	0C - 40C (32F - 104F)
Relative Humidity:	30% - 90% Non - condensing
Download specifications in Adobe PDF format.

Storage Capacity

At the maximum frame rate (30 fps) this DVR will use approximately 4 to 6 gigabytes of hard drive space per camera, per day. Therefore, on a 500 gig hard drive with all 8 cameras hooked up you can store about 10 to 14 days of recorded video. The use of record time scheduling and motion detection can extend the recording capacity up to twice this amount. You may also tune down the record frame rate to increase your recording capacity (however this may affect video picture quality). Once the hard drive is full the unit will start recording over the oldest video.

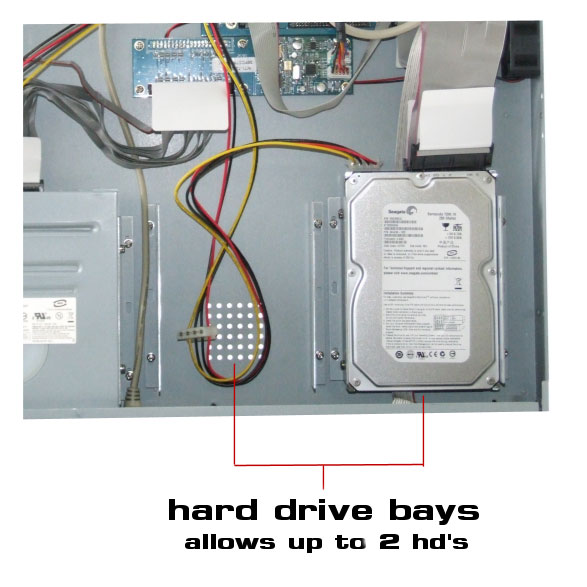

You may upgrade the HDD storage on this machine up to 2 Terabytes).

Please keep in mind that actual storage capacity varies greatly based on many factors including the resolution and imaging chip size of each camera, the amount of motion in the field of view, and of course the selected DVR features and settings such as the frame rate, scheduling, and motion detection. Recording audio will also use up storage space (approx 1-2 gigs per audio input per day).

Be careful when comparing our storage capacity to other DVRs. Often times other manufacturers will claim that their DVR will allow you to store months of video. Be aware that they may be assuming that the frame rate is turned all the way down to one frame per second which is not a practical setting to use.

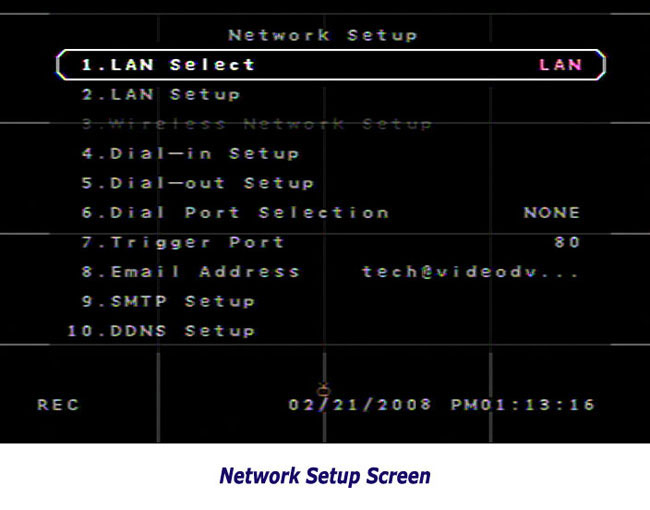

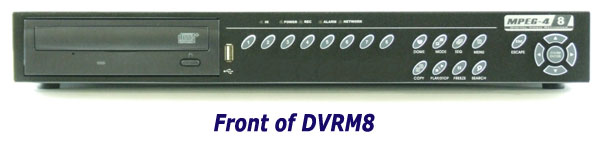

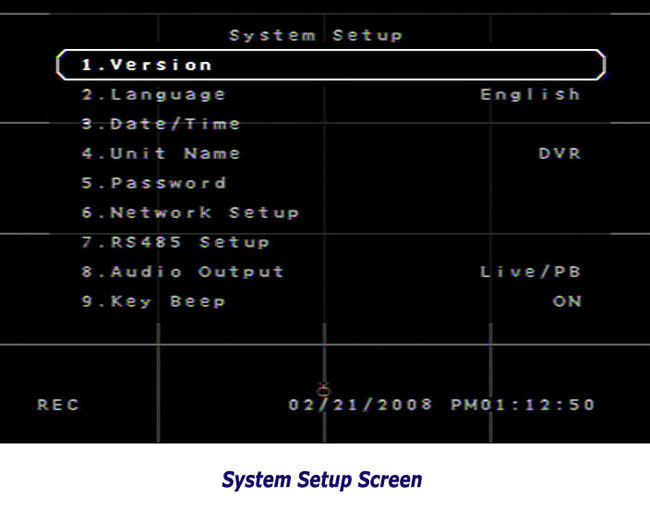

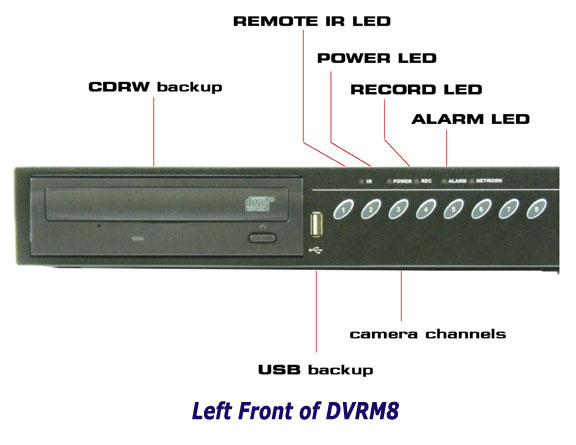

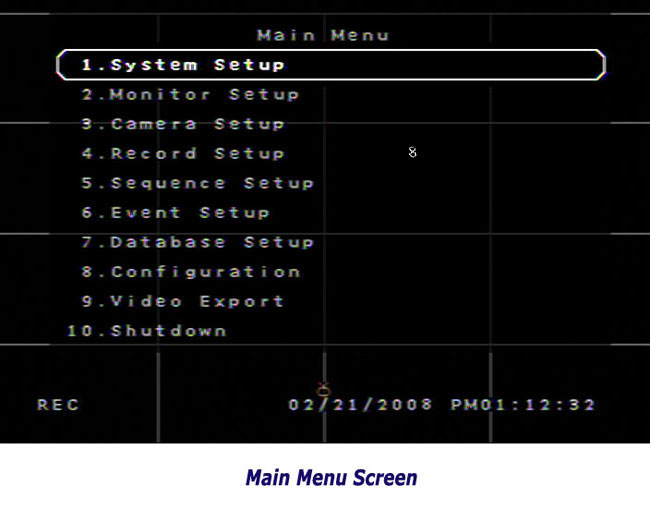

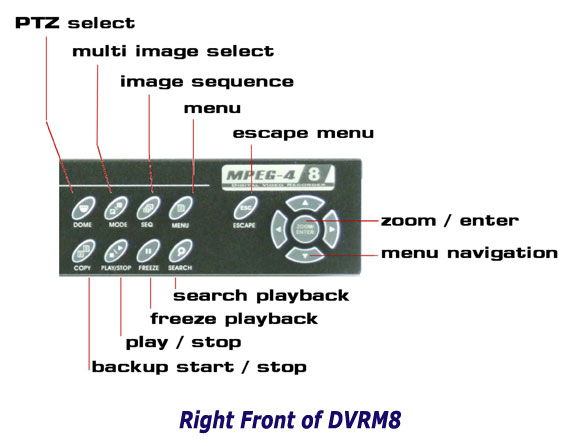

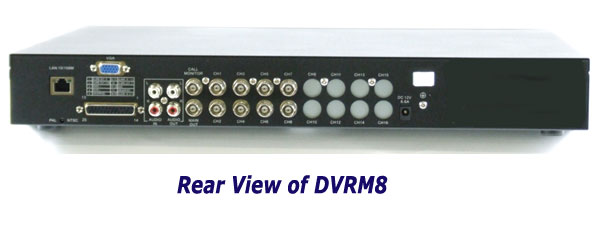

Additional Images
